AC Schnitzer performance upgrade for BMW 3 series G20/G21 M340i xDrive (1100320450-36)

for M340i xDrive with engine B58B30O1 and 275 kW / 374 hp standard performance
performance: 309 kW / 420 hp
torque standard: 500Nm
torque AC Schnitzer: 600Nm
- for vehicles with SA 01CE recuperation system
- measured according to current test method WLTP/ Euro 6d
You can mount this item individually or in combination with an AC Schnitzer silencer. Homologations for this area of application are available and are supplied with the product.

Notes:
- Performance data when using min. 98 octane fuel
- Includes 36 months AC Schnitzer warranty from initial registration.
- Please state vehicle/owner data and mileage
Scope of delivery:

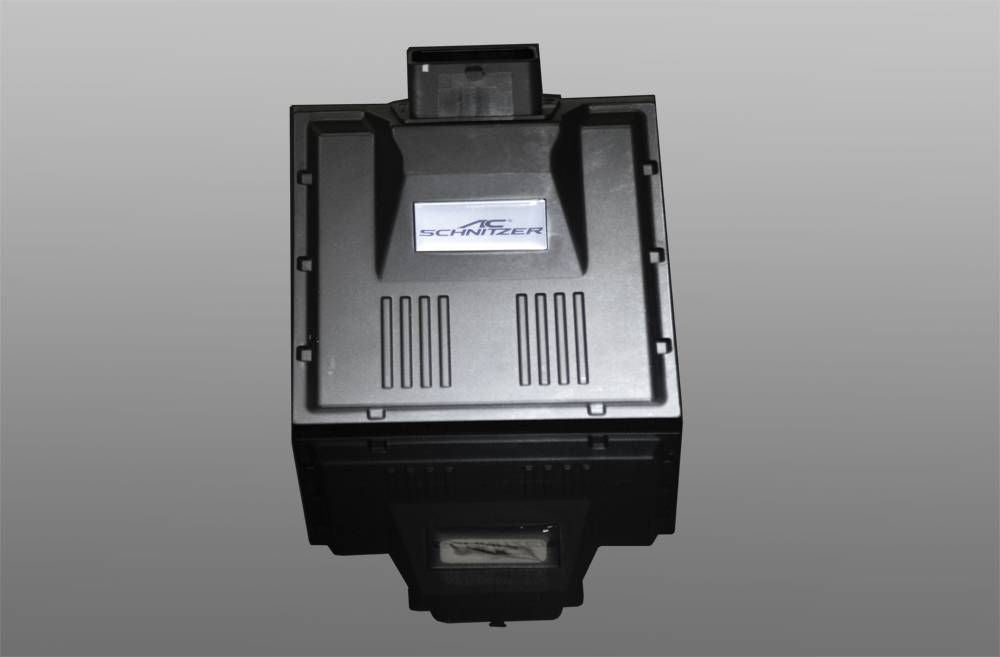

- control unit with software programming
- vehicle-specific wiring harness with original plug connection
- incl. assembly guarantee: 3 years in Germany - up to 5 years internationally
- warranty terms
- aluminium sticker for the engine compartment
- sticker "efficient performance"
- certificate “Performance Upgrade”
- certificate of authenticity
- homologation certificate

Philosophy / Technology
Engine tuning and performance upgrades have a long tradition at AC Schnitzer. To be on the safe side, we forgo achieving the possible maximum power in favor of greater durability. Many of our performance upgrades are therefore designed to increase torque rather than horsepower. After all, torque is what you feel when, for example, you are "pressed into your seats" when moving off. Petrol The performance upgrade consists of a control unit for retrofitting in the vehicle. The control unit ensures that the data is processed depending on the engine speed and accelerator pedal position, and that the values ??for boost pressure, rail pressure and air mass are passed on to the standard engine control unit. The parameters are slightly increased by the AC Schnitzer performance upgrade. This achieves a model-dependent power increase of up to 20% of the engine and increases engine efficiency. During development, we check in which engine speed range the greatest increase in torque is achieved. Subsequently, the modified parameters are reduced in a controlled manner for the high-rev range above 5000 rpm. This prevents the engine from overheating during longer, fast journeys. The standard engine protection parameters are retained with the AC Schnitzer performance upgrade. In addition, the AC Schnitzer performance upgrade also features extensive additional parameters to protect the engine and drivetrain, such as cold start and overheat control.

Cold start control
The AC Schnitzer performance upgrades are only activated from approx. 1000 rpm and an oil temperature of 80° C.

Overload / overheating control
The power is automatically reduced to the standard power when the water temperature reaches 115°C.

Extensively tested
AC Schnitzer performance upgrades undergo extensive testing on racetracks, test benches, and in everyday road traffic. These tests last up to nine months and cover several tens of thousands of kilometers.

Performance upgrade installed - what about the warranty?
For all AC Schnitzer performance upgrades, AC Schnitzer provides a country-dependent warranty of up to 5 years from the date of first registration, with a mileage of up to 120,000 km, on the components moved by the engine. For M models, AC Schnitzer provides this country-dependent warranty of up to 4 years from the date of first registration and up to 80,000 km. This gives you peace of mind in the event of a problem. You can find our complete warranty conditions here.

Appraise
The parts certificate is an official document that permits the use of tuning parts on public roads under the StVZO (Road Traffic Licensing Regulations) in Germany (and several other countries). After the part described in the certificate has been installed or modified, the vehicle must be presented to an official inspection center. The inspector will verify the correct installation and authenticity of the part and then enter the modification in the vehicle documents. The vehicle's official operating license thus remains valid. The parts certificate is part of the delivery package.

Scope of delivery:
- Control unit with software programming
- Vehicle-specific wiring harness with original plug connection
- Including component warranty: 3 years in Germany
– up to 5 years internationally
- Warranty conditions
- Aluminum badge for the engine compartment
- "efficient performance" sticker
- Performance upgrade certificate
- Certificate of authenticity
- Parts certificate

Uniqueness of the AC Schnitzer performance upgrade
- Additional control unit with programming
- "Plug & Play"
- optimized engine efficiency
- more power = improved agility
- Warranty: 3 years in Germany
– up to 5 years internationally
- Find our complete warranty terms and conditions here.
- Expert opinions for almost all performance upgrades
- Increased torque more important than horsepower
- Maximum power sacrificed to ensure engine stability and longevity
- Extensively tested
- Increased driving pleasure
