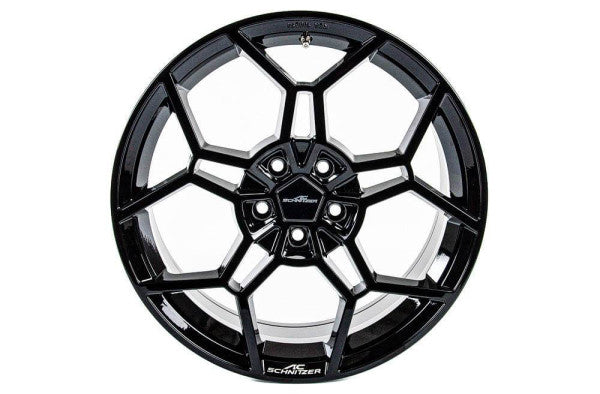

AC Schnitzer wheel 7.5 x 19" type MI3 Black offset 49 for MINI J01 (361175193128)

'- for front axle < Uniqueness of the MI3 Light Alloy Wheels - Engineered in Germany - Weight-optimized - heat treated - Developed exclusively for MINI vehicles - With exclusive AC Schnitzer lettering - Compatible with standard RDC system - also available as a complete wheel - Warranty 2 years - Production monitored according to ISO standard - Black - Spacers/mounting package for the best possible position in the wheel arch (to be ordered separately) - Assembly package vehicle specific Scope of delivery - Rim MI3 casted, monoblock wheel in Black - Specific hub cover - Quality tag - National Type Approval - Optional vehicle- and rim-specific mounting and fastening material - Certificate of Authenticity

MI3 Light Alloy Wheels - Developed exclusively for MINI vehicles
- machined original AC Schnitzer logo
- open design in Black, giving a clear view to the brakes Uniqueness of the MI3 Light Alloy Wheels - Engineered in Germany
- Weight-optimized
- heat treated
- Developed exclusively for MINI vehicles
- With exclusive AC Schnitzer lettering
- Compatible with standard RDC system
- also available as a complete wheel
- Warranty 2 years
- Production monitored according to ISO standard
- Black
- Spacers/mounting package for the best possible position in the wheel arch (to be ordered separately)
- Assembly package vehicle specific Scope of delivery - Rim MI3 casted, monoblock wheel in Black
- Specific hub cover
- Quality tag
- homologation certificate
- Optional vehicle- and rim-specific mounting and fastening material
- Certificate of Authenticity Philosophy/Design Sculptural design for MINI enthusiasts
AC Schnitzer is making a powerful statement in the world of exclusive MINI tuning with its new MI3 alloy
wheel. Its world premiere marks a milestone in design, technology and individualisation.
The MI3 wheel catches the eye at first glance: the progressive, geometrically structured Y-spoke design
looks like a modern sculpture. The interlocking architecture of angular, partly asymmetrical surfaces is
reminiscent of a tech-inspired spider's web structure – a design feature that perfectly combines
dynamism, precision and lightness.
The striking pentagonal hub cap echoes the AC Schnitzer brand design and is a deliberate nod to the
brand's iconic wheel models. As a special highlight, each wheel bears the laser-engraved AC Schnitzer
logo – discreet but unmistakable. Material Only high-quality aluminium alloys with the AlSi7 or AlSi11 specification are used.
Both types of material are additionally heat-treated in the production process, which results in higher
strength and simultaneous weight reduction.
Material samples during the production process guarantee the constant and high quality of the material. Production Steps on the way to perfection
A high-quality cast blank is the prerequisite for a perfect and durable wheel. AC Schnitzer uses the lowpressure
casting process for its manufacture. The aluminium alloy is pressed into a multi-part casting
mould at a pressure of up to 1.2 bar. After cooling to approx. 400 degrees Celsius, the mould is opened
and the cast blank is ready for further processing.
This takes place during machining and a complex painting process.
X-ray inspections, leak tests and the use of various measuring methods throughout the entire
manufacturing process guarantee the consistent and high quality of the wheel. Glossy Black surface In this process, the wheel is first primed, then completely painted. A two-layer clear coat is then applied,
consisting of a polyester primer and the matt acrylic clear coat. Test Procedures / Safety After their design, the first sample rims are manufactured under real production conditions. These must
undergo a multitude of tests. Among other things, the strength is tested. The "rim life" is simulated in the
bending circumferential test. Every AC Schnitzer rim must withstand this intact in order to be allowed to
be produced and sold at all.
This is followed by vehicle-specific tests, including test installations with check of unobstructed
movement and driving tests on public roads and on race tracks. Only after these procedures our rims
receive their homologation, i.e. the approval to be used in road traffic.
Wheels are safety-relevant components. Therefore, they are checked and tested with the greatest care.
This starts with the first chemical material tests and ends with hard testing machine endurance runs:
- § 30 StVZO wheel guideline
- ECE R124
- Bending-rotation tests
- 90° impact test
- unwinding tests Scope of delivery - Rim MI3 casted, monoblock wheel in Black
- Specific hub cover
- Quality tag
- homologation certificate
- Optional vehicle- and rim-specific mounting and fastening material
- Certificate of Authenticity Uniqueness of the MI3 Light Alloy Wheels - Engineered in Germany
- Weight-optimized
- heat treated
- Developed exclusively for MINI vehicles
- With exclusive AC Schnitzer lettering
- Compatible with standard RDC system
- also available as a complete wheel
- Warranty 2 years
- Production monitored according to ISO standard
- Black or BiColor
- Spacers/mounting package for the best possible position in the wheel arch (to be ordered separately)
- Assembly package vehicle specific
