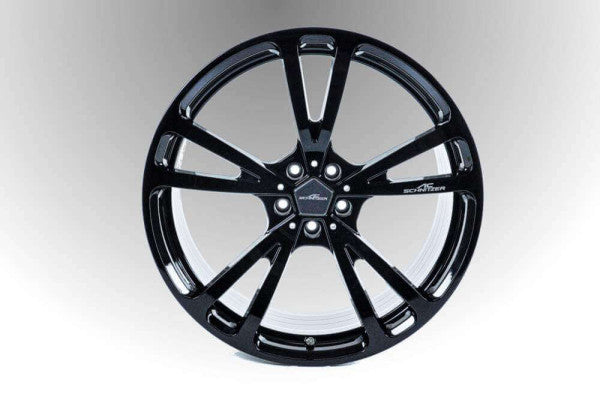

AC Schnitzer wheel 9,0 x 21" AC3 FlowForming "black" offset 34 for BMW 5 series G30/G31 LCI (361190213328)

for 5 series G30/G31
for front axle
Scope of delivery:
- rim AC3 Flowforming Black
- specific hub cover
- quality tag
- homologation certificate
- optional vehicle- and rim-specific mounting and fastening material
- certificate of Authenticity

Philosophy/Design
Wheels not only physically, but also visually, establish the connection between a car and the road. "That's why the correct proportions of the rims to the body are so important," explains AC Schnitzer Chief Designer Michele Viandante. "Rims that are too small can quickly make a vehicle appear high-legged and unstable." The AC3 Flowforming rims achieve what initially seems contradictory: weight reduction combined with increased wheel diameters. The AC3 Flowforming rims measure 9 or 10 x 21 inches and are available in three color options: black, bi-color silver/anthracite, or matte anthracite. Visually, the rims are clearly part of the AC3 rim family and complement the portfolio in terms of sizes, applications, and manufacturing processes. The reduced weight of the AC3 Flowforming rims lowers the vehicle's unsprung mass by approximately 10 kg, thereby also reducing its CO2 emissions. At the same time, there is a noticeable improvement in driving dynamics, as the gyroscopic forces on the axles are reduced by approximately four times – a perceived reduction of 40 kg. The AC Schnitzer AC3 flow-formed wheels therefore offer real advantages: for the driver and the environment.

material
Only high-quality aluminum alloys are used. The material undergoes additional heat treatment during the production process, resulting in increased strength and reduced weight. Material samples taken during the manufacturing process ensure the consistently high quality of the material.

production
Flow forming is one of the most advanced manufacturing technologies in the wheel industry. In this production process, after the initial aluminum casting, the raw product is further processed by rolling. This step serves to compact the metal, guaranteeing greater stability and impact resistance of the rim. Furthermore, the improved stability allows for even more intricate rim designs, as the wall thicknesses can be significantly thinner compared to conventionally manufactured rims. And this is measurable: compared, for example, to the BMW forged "Double Spoke 706 M" rim for the M5, which at 10.5J x 20" is even one inch smaller than the new AC3 flow-formed rims, these are 2.4 kg or 2.5 kg lighter than the BMW rim.

Black surface
In this process, the wheel is first primed, then completely painted. A two-layer clear coat is then applied, consisting of a polyester primer and an acrylic clear coat.

Testing procedures / Safety
After their design, the first sample rims are manufactured under real production conditions. These must undergo a multitude of tests. Among other things, their strength is tested. The bending test simulates the "rim lifespan." Every AC Schnitzer rim must survive this lifespan unscathed in order to be produced and sold. Vehicle-specific tests, including test installations with clearance measurements and driving tests on public roads and racetracks, follow. Only after these procedures do our rims receive homologation, i.e., approval for use on public roads. Wheels are safety-critical components. Therefore, they are inspected and tested with the utmost care. This begins with initial chemical material tests and concludes with rigorous endurance tests on test machines: - §30 StVZO wheel guidelines - ECE R124 - Bending tests - 90° impact test - Rolling tests

Scope of delivery:
- AC3 Flowformed Black Rim
- Hubcap
- Quality Tag
- Certificate of Conformity
- Optional Vehicle- and Rim-Specific Mounting and Fastening Material
- Certificate of Authenticity
- Care Instructions

Unique features of the AC3 Flowforming rim:
- Weight-optimized
- Developed exclusively for BMW vehicles
- Integrated AC Schnitzer logo
- Open design in black, providing a direct view of the brakes
- Engineered in Germany
- Compatible with standard RDC systems
- Also available as a complete wheel set
- 2-year warranty
- Manufactured according to ISO standards
- Black, optionally also available in BiColor Silver/Anthracite or Anthracite Matte
- KDS mount for wheel alignment according to BMW specifications is included
- Wheel spacers/mounting kit for optimal fitment in the wheel arch (to be ordered separately)
- Vehicle-specific mounting kit
