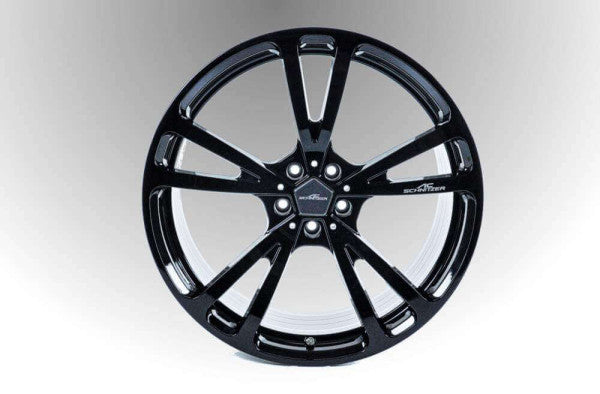

AC Schnitzer wheel 9,0 x 21" AC3 FlowForming "black" offset 34 for BMW X4M F98 (361190213328)

for X4M F98 for front axle AC3 Flowforming Wheels - weight-optimized - developed exclusively for BMW vehicles - machined original AC Schnitzer logo - open design in Black, giving a clear view to the brakes Uniqueness of the AC3 Flowforming Wheels: - engineered in Germany - compatible with standard RDC system - also available as a complete wheel - Warranty 2 years - production monitored according to ISO standard - Black, optionally also in Anthracite matt or BiColor Silver/Anthracite - KDS mount for wheel alignment according to BMW specification is available - Spacers/mounting package for the best possible position in the wheel arch (to be ordered separately) - Assembly package vehicle specific Scope of delivery: - rim AC3 Flowforming Black - specific hub cover - quality tag - homologation certificate - optional vehicle- and rim-specific mounting and fastening material - certificate of Authenticity

Philosophy/Design The wheels not only physically but also visually establish the connection between a car and the road. "That's why it's very important to have the right proportions between the rims and the body," explains AC Schnitzer chief designer Michele Viandante. "Rims that are too small can quickly make a vehicle look long-legged and unstable." The AC3 Flowforming rims achieve what initially seems contradictory: reducing weight while increasing wheel diameters.
The AC3 Flowforming rims measure 9 or 10 x 21 inches. Three color variants are available: black, bi-color silver/anthracite or matt anthracite. Visually, the rims can clearly be assigned to the AC3 rim family and they complement the portfolio in terms of sizes, areas of use and manufacturing processes.
The lower weight of the AC3 Flowforming rims reduces the unsprung masses on the vehicle by around 10 kg and thus also reduces the vehicle's CO2 emissions. At the same time, there is also a noticeable improvement in driving dynamics, as the gyroscopic forces on the axles are reduced by around four times - i.e. by a perceived 40 kg. The AC Schnitzer AC3 Flowforming rims therefore offer real advantages: for the driver and the environment. Material Only high-quality aluminum alloys are used. The material is additionally heat-treated in the production process, which results in greater strength while reducing weight.
Material samples during the production process ensure the consistent and high quality of the material. Production The flowforming process is one of the most advanced manufacturing technologies in the wheel industry. In this production process, after the actual aluminum casting, the raw product is further processed by rolling it out. This step serves to compress the metal, which guarantees greater stability and shock resistance of the rim.
On the other hand, the design of the rims can be made more delicate thanks to the improved stability, as the wall thicknesses can be significantly thinner than conventionally manufactured rims.
And this is measurable: compared, for example, with the BMW forged rim "Double Spoke 706 M" for the M5, which at 10.5J x 20" is even one inch smaller than the new AC3 flowforming rims, these are 2.4 kg and 2.5 kg lighter than the BMW rim. Surface Black In this process, the wheel is first primed and then completely painted. A two-layer clear coat is then applied, which consists of a polyester primer and the acrylic clear coat. Testing procedures / safety After they have been designed, the first sample rims are manufactured under real production conditions. These have to undergo a large number of tests. Among other things, their strength is tested. The bending test simulates the "rim life". Every AC Schnitzer rim must survive this undamaged in order to be produced and sold.
Vehicle-specific tests, including test installations with clearance measurements and driving tests on public roads and race tracks, follow. Only after these procedures do our rims receive their homologation; i.e. approval to be used on public roads.
Wheels are safety-relevant components. That is why they are checked and tested with the greatest care. This begins with initial chemical material tests and ends with tough endurance tests on test machines:
- §30 StVZO wheel guidelines
- ECE R124
- Bending tests
- Impact test 90°
- Rolling tests Scope of delivery: - AC3 Flowforming rim black
- Hub cap
- Quality tag
- Report
- Optional vehicle and rim-specific assembly and fastening material
- Certificate of authenticity
- Care instructions Uniqueness of the AC3 Flowforming rim: - Weight optimized
- Developed exclusively for BMW vehicles
- Integrated AC Schnitzer lettering
- Open design in black that allows a direct view of the brakes
- Engineered in Germany
- Compatible with standard RDC system
- Also available as a complete wheel set
- 2-year warranty
- Production monitored according to ISO standards
- Black, optionally also in BiColor Available in silver/anthracite or matt anthracite
- KDS mount for wheel alignment according to BMW specification is available
- Spacers / mounting package for the best possible position in the wheel house (to be ordered separately)
- Vehicle-specific mounting package
